ox-w3ctr 开发笔记 (2)

我（2025/05/09）开始写本笔记的第二篇。这一片会记录所有比较简单的元素 (element) 和对象 (object) 的导出。由于各元素的导出是不相关的，这一篇倒不用太参考上一篇那样的分总结构，写成总分然后在最后给出调用关系图（ ~~懒得画了~~ ）也许是不错的做法。

经过本文和上一篇的整理，还未改进或记录的部分还有：

template 和 inner-template
headline 以及 section
special-block
table, table-row, table-cell
latex-environment, latex-fragment
src-block, inline-src-block
footnote-reference
link
timestamp

上面的每一条大概都可以水一篇的样子…本文对应的最近的 Commit 为 9026ce9。

在 ox-html 中， Item 对应于 HTML 中的有序列表或无序列表中的 <li> 或描述列表的 <dt> 和 <dd> ，Plain List 则对应于 <ol> ， <ul> 和 <dl> 三大列表。在最简单的情况下，我们希望 Org 列表的 HTML 导出应该如下所示：

# ordered list
1. hello
# unordered list
- world
# descriptive list
- what's this ::

<ol><li>hello</li></ol>
<ul><li>world</li></ul>
<dl><dt>what's this</dt><dd></dd></dl>

在介绍实现之前，让我们先进一步了解一下这三种列表。下面的内容来自 MDN 文档。

HTML <ol> 元素表示有序列表，通常渲染为一个带编号的列表。允许的内容只有 <li>, <script> 和 <template> 。 <ol> 可以有如下属性：

reversed: 此布尔值属性指定列表中的条目是否是倒序排列，即编号是否应从高到低反向标注。
start: 一个整数值属性，制定了列表编号的起始值。此属性的值应为阿拉伯数字。
type: 设置编号的类型。 a 表示小写英文字母编号； A 表示大写英文字母编号； i 表示小写罗马数字编号； I 表示大写罗马数字编号； 1 表示默认数字编号。 type 在 HTML4 中被启用，但在 HTML5 中被重新引入。文档建议我们尽量使用 CSS 的 list-style-type 而不是 type 属性。

<ol> 的这些属性都可以使用我们在上一篇介绍的 #+attr__ 或传统的 #+attr_html 来指定，没什么好说的了。

HTML <ul> 元素表示无序的项目列表，通常渲染为项目符号列表。相比 <ol> 它没有那些属性，这里我们来介绍一下 <ul> 和 <ol> 的共同子元素 <li> 。

<li> 元素用于表示列表中的项目。它必须包含在一个父元素中：有序列表 <ol> 、无序列表 <ul> 或菜单 <menu> 。在菜单和无序列表中，列表项通常使用项目符号显示。在有序列表中，通常在左侧显示一个升序计数器。

对于有序列表中的 <li> ，属性 value 可以指定一个数字来作为列表项当前序数值，后续列表项从该数值开始继续编号。这个属性对于 <ul> 或 <menu> 没有意义。

<dl> 是 description list 的意思，用来表示一组名词和对应的描述，定义或值的配对。在 <dl> 中，名词或术语使用 <dt> 指定，描述详情使用 <dd> 指定。一般来说 <dt> 后面通常跟着一个 <dd> 元素，不过多个连续的 <dt> 元素可以表示由紧随其后的一个 <dd> 元素定义的多个术语。根据 MDN 的描述，单 (<dt>) 对单 (<dd>)，多对单，单对多，多对多都是可以的。但是，零对Ｘ或者Ｘ对零是不行的：

在 ox-html 中，item 的导出由 org-html-item 和 org-html-format-list-item 实现，前者从 item 元素中提取信息，后者负责将提取信息格式化为 HTML 字符串：

(defun org-html-item (item contents info)
  "Transcode an ITEM element from Org to HTML.
CONTENTS holds the contents of the item.  INFO is a plist holding
contextual information."
  (let* ((plain-list (org-element-parent item))
	 (type (org-element-property :type plain-list))
	 (counter (org-element-property :counter item))
	 (checkbox (org-element-property :checkbox item))
	 (tag (let ((tag (org-element-property :tag item)))
		(and tag (org-export-data tag info)))))
    (org-html-format-list-item
     contents type checkbox info (or tag counter))))

我个人对 org-html-format-list-item 的实现不是很满意，它的参数数量太多了，而且还被用于 low-level headline 的导出，对一个函数来说功能太多了：

org-html-format-list-item

(defun org-html-format-list-item (contents type checkbox info
					   &optional term-counter-id
					   headline)
  "Format a list item into HTML.
CONTENTS is the item contents.  TYPE is one of symbols `ordered',
`unordered', or `descriptive'.  CHECKBOX checkbox type is nil or one of
symbols `on', `off', or `trans'.   INFO is the info plist."
  (let ((class (if checkbox
		   (format " class=\"%s\""
			   (symbol-name checkbox)) ""))
	(checkbox (concat (org-html-checkbox checkbox info)
			  (and checkbox " ")))
	(br (org-html-close-tag "br" nil info))
	(extra-newline (if (and (org-string-nw-p contents) headline) "\n" "")))
    (concat
     (pcase type
       (`ordered
	(let* ((counter term-counter-id)
	       (extra (if counter (format " value=\"%s\"" counter) "")))
	  (concat
	   (format "<li%s%s>" class extra)
	   (when headline (concat headline br)))))
       (`unordered
	(let* ((id term-counter-id)
	       (extra (if id (format " id=\"%s\"" id) "")))
	  (concat
	   (format "<li%s%s>" class extra)
	   (when headline (concat headline br)))))
       (`descriptive
	(let* ((term term-counter-id))
	  (setq term (or term "(no term)"))
	  ;; Check-boxes in descriptive lists are associated to tag.
	  (concat (format "<dt%s>%s</dt>"
			  class (concat checkbox term))
		  "<dd>"))))
     (unless (eq type 'descriptive) checkbox)
     extra-newline
     (and (org-string-nw-p contents) (org-trim contents))
     extra-newline
     (pcase type
       (`ordered "</li>")
       (`unordered "</li>")
       (`descriptive "</dd>")))))

我将 org-html-format-list-item 根据列表种类拆分为了多个小函数，方便测试和维护。但目前我还没有重构到 headline，不得不暂时让新老代码共存。

Every item in a plain list(1) (see *note Plain Lists::) can be made into a checkbox by starting it with the string ‘[ ]’. This feature is similar to TODO items (see *note TODO Items::), but is more lightweight. Checkboxes are not included into the global TODO list, so they are often great to split a task into a number of simple steps. Or you can use them in a shopping list.

— (info "(org)Checkboxes")

通过在列表开头添加 [x], [ ] 或 [-] ，我们可以标注列表项的完成情况。ox-html 为 checkbox 的导出提供了三种选项，分别是 unicode, ascii 和 html ：

(defconst org-html-checkbox-types
  '((unicode .
             ((on . "&#x2611;")
	      (off . "&#x2610;")
	      (trans . "&#x2610;")))
    (ascii .
           ((on . "<code>[X]</code>")
            (off . "<code>[&#xa0;]</code>")
            (trans . "<code>[-]</code>")))
    (html .
	  ((on . "<input type='checkbox' checked='checked' />")
	   (off . "<input type='checkbox' />")
	   (trans . "<input type='checkbox' />"))))
  ...)

在原版注释中提到只有 ascii 支持三选 checkbox，不过我发现可以使用 ☐ 勉强表示一下中间态，因此 ox-w3ctr 中的 checkbox 定义如下：

(defconst t-checkbox-types
  '(( unicode .
      ((on . "&#x2611;")
       (off . "&#x2610;")
       (trans . "&#x2612;")))
    ( ascii .
      ((on . "<code>[X]</code>")
       (off . "<code>[&#xa0;]</code>")
       (trans . "<code>[-]</code>")))
    ( html .
      ((on . "<input type=\"checkbox\" checked>")
       (off . "<input type=\"checkbox\">")
       (trans . "<input type=\"checkbox\">"))))
  ...)

实际上 HTML 的 <input> 也可以做到中间态，但是需要 JavaScript。

在由 checkbox 状态获取对应 HTML 字符串上我采用了 org-html-checkbox 的代码：

(defsubst t--checkbox (checkbox info)
  "Format CHECKBOX into HTML.
See `org-w3ctr-checkbox-types' for customization options."
  (declare (ftype (function (t plist) (or null string)))
           (side-effect-free t) (important-return-value t))
  (cdr (assq checkbox
             (cdr (assq (plist-get info :html-checkbox-type)
                        t-checkbox-types)))))

(defsubst t--format-checkbox (checkbox info)
  "Format a CHECKBOX option to string.

CHECKBOX can be `on', `off', `trans', or anything else.
Returns an empty string if CHECKBOX is not one of the these three."
  (declare (ftype (function (t plist) string))
           (side-effect-free t) (important-return-value t))
  (let ((a (t--checkbox checkbox info)))
    (concat a (and a " "))))

（在实现 t--checkbox 时由于我错误地标注返回类型为 string ，经过 native-comp 后 t--format-checkbox 输出存在问题：bug#78394: 31.0.50; Questions about native-comp-speed and type decl。）

相比原版 org-html-format-list-item ，我的实现只是拆分了逻辑，添加了一些类型声明：

(defun t--format-ordered-item (contents checkbox info cnt)
  "Format a ORDERED list item into HTML."
  (declare (ftype (function ((or null string) t plist t) string))
           (side-effect-free t) (important-return-value t))
  (let ((checkbox (t--format-checkbox checkbox info))
        (counter (if (not cnt) "" (format " value=\"%s\"" cnt))))
    (concat (format "<li%s>" counter) checkbox
            (t--nw-trim contents) "</li>")))

(defun t--format-unordered-item (contents checkbox info)
  "Format a UNORDERED list item into HTML."
  (declare (ftype (function ((or null string) t plist) string))
           (side-effect-free t) (important-return-value t))
  (let ((checkbox (t--format-checkbox checkbox info)))
    (concat "<li>" checkbox (t--nw-trim contents) "</li>")))

(defun t--format-descriptive-item (contents checkbox info term)
  "Format a DESCRIPTIVE list item into HTML."
  (declare (ftype (function ((or null string) t plist t) string))
           (side-effect-free t) (important-return-value t))
  (let ((checkbox (t--format-checkbox checkbox info))
        (term (or term "(no term)")))
    (concat (format "<dt>%s</dt>" (concat checkbox term))
            "<dd>" (t--nw-trim contents) "</dd>")))

在上一节中我们已经看到描述列表中 <dt> 与 <dd> 对应关系的多样性，但 ox-html 中的实现只支持了一对一这一种。添加这一支持倒不是什么困难的事情，检查第一个 item 有没有 <dt> 和最后一个 item 有没有 <dd> 即可：

(defun t--format-descriptive-item-ex (contents item checkbox info term)
  "Format a DESCRIPTION list item into HTML."
  (declare (ftype (function ((or null string) t t plist t) string))
           (side-effect-free t) (important-return-value t))
  (let ((checkbox (t--format-checkbox checkbox info))
        (contents (let ((c (t--nw-trim contents)))
                    (if (equal c "") nil c))))
    (cond
     ;; first item
     ;; not need actually.
     ((not (org-export-get-previous-element item info))
      (let ((term (or term "(no term)")))
        (concat (format "<dt>%s</dt>" (concat checkbox term))
                (when contents (format "<dd>%s</dd>" contents)))))
     ;; last item
     ((not (org-export-get-next-element item info))
      (let ((term (let ((c (concat checkbox term)))
                    (if (string= c "") nil c))))
        (concat
         (when term (format "<dt>%s</dt>" term))
         "<dd>" contents "</dd>")))
     ;; normal item
     (t (let ((term (let ((c (concat checkbox term)))
                      (if (string= c "") nil c))))
          (concat (when term (format "<dt>%s</dt>" term))
                  (when contents (format "<dd>%s</dd>" contents))))))))

虽然但是，我还是使用了上面的朴素实现，也许使用它更不容易出现“难以理解”的行为，比如明明 Org-mode 源文件存在列表项但在导出中却消失了之类的问题。

至于负责调用这些函数的函数 org-w3ctr-item 和 org-w3ctr-plain-list 就没什么好说的了，直接放代码吧：

;;;; Item
;; See (info "(org)Plain Lists")
;; Fixed export. Not customizable.
(defun t-item (item contents info)
  "Transcode an ITEM element from Org to HTML.
CONTENTS holds the contents of the item."
  (declare (ftype (function (t (or null string) plist) string))
           (side-effect-free t) (important-return-value t))
  (let* ((plain-list (org-export-get-parent item))
         (type (org-element-property :type plain-list))
         (checkbox (org-element-property :checkbox item)))
    (pcase type
      ('ordered
       (let ((counter (org-element-property :counter item)))
         (t--format-ordered-item contents checkbox info counter)))
      ('unordered
       (t--format-unordered-item contents checkbox info))
      ('descriptive
       (let ((term (when-let* ((a (org-element-property :tag item)))
                     (org-export-data a info))))
         ;;(t--format-descriptive-item-ex
         ;; contents item checkbox info term)))
         (t--format-descriptive-item contents checkbox info term)))
      (_ (error "Unrecognized list item type: %s" type)))))

;;;; Plain List
;; See (info "(org)Plain Lists")
;; Fixed export. Not customizable.
(defun t-plain-list (plain-list contents info)
  "Transcode a PLAIN-LIST element from Org to HTML.
CONTENTS is the contents of the list."
  (declare (ftype (function (t (or null string) plist) string))
           (important-return-value t))
  (let* ((type (pcase (org-element-property :type plain-list)
                 (`ordered "ol") (`unordered "ul") (`descriptive "dl")
                 (other (error "Unknown HTML list type: %s" other))))
         (attributes (t--make-attr__id* plain-list info t)))
    (format "<%s%s>\n%s</%s>" type attributes contents type)))

在 HTML 中，块引用使用 <blockquote> 来表示，代表其中的文字是引用内容。通常在渲染时，这部分的内容会有一定的缩进。若引文来源于网络，则可以将原内容的出处 URL 地址设置倒 cite 特性上，若要以文本的形式告知读者引文的出处时，可以通过 <cite> 元素。

<blockquote> 的 cite 属性可以通过 #+attr__ 指定，至于它提到的使用 <cite> 注明出处，我们可以考虑使用 #+caption 来指定并在 org-w3ctr-quote-block 中实现，不过我感觉似乎没有太大的必要。下面是实现代码：

(defun t-quote-block (quote-block contents info)
  "Transcode a QUOTE-BLOCK element from Org to HTML.
CONTENTS holds the contents of the block."
  (declare (ftype (function (t (or null string) plist) string))
           (important-return-value t))
  (format "<blockquote%s>%s</blockquote>"
          (t--make-attr__id* quote-block info t)
          (t--maybe-contents contents)))

You can include literal examples that should not be subjected to markup. Such examples are typeset in monospace, so this is well suited for source code and similar examples.

— (info "(org)Literal Examples")

在 ox-html 的实现中， org-html-example-block 会在内部调用 org-html-format-code 最终生成形如 <pre>...</pre> 的 HTML 字符串。 <pre> 元素表示预定义格式文本。在该元素中的文本通常按照原文件中的编排，以等宽字体的形式展现出来。文本中的空白符都会显示出来。

(defun org-html-example-block (example-block _contents info)
  "Transcode a EXAMPLE-BLOCK element from Org to HTML.
CONTENTS is nil.  INFO is a plist holding contextual
information."
  (let ((attributes (org-export-read-attribute :attr_html example-block)))
    (if (plist-get attributes :textarea)
	(org-html--textarea-block example-block)
      (if-let* ((class-val (plist-get attributes :class)))
          (setq attributes (plist-put attributes :class (concat "example " class-val)))
        (setq attributes (plist-put attributes :class "example")))
      (format "<pre%s>\n%s</pre>"
	      (let* ((reference (org-html--reference example-block info))
		     (a (org-html--make-attribute-string
			 (if (or (not reference) (plist-member attributes :id))
			     attributes
			   (plist-put attributes :id reference)))))
		(if (org-string-nw-p a) (concat " " a) ""))
	      (org-html-format-code example-block info)))))

可以看到代码对 #+attr_html 做了一些工作，比如检查 :textarea 判断是否生成为 <textarea> 标签，添加 example 类和 id 属性。我同样不是很喜欢 ox-html 中 example block 导出的实现方法，功能太复杂了，textarea 应该使用专门的方式导出。

(defun t-example-block (example-block _contents info)
  "Transcode a EXAMPLE-BLOCK element from Org to HTML.
CONTENTS is nil."
  (declare (ftype (function (t t plist) string))
           (important-return-value t))
  (format "<div%s>\n<pre>\n%s</pre>\n</div>"
          (t--make-attr__id* example-block info)
          (org-remove-indentation
           (org-element-property :value example-block))))

在我的实现中移除了默认的 example 类，而导出为一个比较“干净”的 <div><pre>...</pre></div> 字符串， #+attr__ 属性会附加在外层的 <div> 而不是内部的 <pre> 上。

The HTML export backend transforms ‘<’ and ‘>’ to ‘<’ and ‘>’. To include raw HTML code in the Org file so the HTML export backend can insert that HTML code in the output, use HTML export code blocks.

— (info "(org) Quoting HTML tags")

这一元素在 HTML 中当然没有直接对应物，毕竟是直接导出到 HTML 内容，下面是 ox-html 的实现：

(defun org-html-export-block (export-block _contents _info)
  "Transcode a EXPORT-BLOCK element from Org to HTML.
CONTENTS is nil.  INFO is a plist holding contextual information."
  (when (string= (org-element-property :type export-block) "HTML")
    (org-remove-indentation (org-element-property :value export-block))))

同样，由于我们的导出对象仅仅是 HTML，也许我们可以忽略掉导出类型，不过我选择了更有意思的做法，允许导出 CSS，JavaScript 或 S-exp 形式的 HTML，以及 elisp 代码的求值结果：

(defun t-export-block (export-block _contents _info)
  "Transcode a EXPORT-BLOCK element from Org to HTML.
CONTENTS is nil."
  (declare (ftype (function (t t t) string))
           (important-return-value t))
  (let* ((type (org-element-property :type export-block))
         (value (org-element-property :value export-block))
         (text (org-remove-indentation value)))
    (pcase type
      ;; Add mhtml-mode also.
      ((or "HTML" "MHTML") text)
      ;; CSS
      ("CSS" (format "<style>%s</style>" (t--maybe-contents value)))
      ;; JavaScript
      ((or "JS" "JAVASCRIPT") (concat "<script>\n" text "</script>"))
      ;; Expression that return HTML string.
      ((or "EMACS-LISP" "ELISP")
       (format "%s" (eval (read (or (t--nw-p value) "\"\"")))))
      ;; SEXP-style HTML data.
      ("LISP-DATA" (t--sexp2html (read (or (t--nw-p value) "\"\""))))
      (_ ""))))

For simplicity when using small examples, you can also start the example lines with a colon followed by a space. There may also be additional whitespace before the colon:

— (info "(org) Literal Examples")

org-w3ctr-example-block 的属性附加到 div 而不是 pre 似乎是个问题，那么 Fixed Width 元素的导出正好弥补了这一部分。ox-html 的导出固定了类：

(defun org-html-fixed-width (fixed-width _contents _info)
  "Transcode a FIXED-WIDTH element from Org to HTML.
CONTENTS is nil.  INFO is a plist holding contextual information."
  (format "<pre class=\"example\">\n%s</pre>"
	  (org-html-do-format-code
	   (org-remove-indentation
	    (org-element-property :value fixed-width)))))

类似 example block 的导出，我也去掉了它，并让用户自己设定：

(defun t-fixed-width (fixed-width _contents info)
  "Transcode a FIXED-WIDTH element from Org to HTML.
CONTENTS is nil."
  (declare (ftype (function (t t plist) string))
           (important-return-value t))
  (format "<pre%s>%s</pre>"
          (t--make-attr__id* fixed-width info t)
          (let ((value (org-remove-indentation
                        (org-element-property :value fixed-width))))
            (if (not (t--nw-p value)) value
              (concat "\n" value "\n")))))

A line consisting of only dashes, and at least 5 of them, is exported as a horizontal line.

— (info "(org) Horizontal Rules")

<hr> 元素表示段落级元素之间的主题转换（例如，一个故事中的场景的改变，或一个章节的主题的改变）。在 HTML 的早期版本中，它是一个水平线。现在它仍能在可视化浏览器中表现为水平线，但它目前被定义为是语义上而非表现层面上的术语。所以如果想画一条水平线，请使用适当的 CSS 样式来实现。

ox-html 使用了 org-html-close-tag 来创建 <hr> 标签，我就直接实现为一个常函数了：

(defun t-horizontal-rule (_horizontal-rule _contents _info)
  "Transcode an HORIZONTAL-RULE object from Org to HTML.
CONTENTS is nil."
  (declare (ftype (function (t t t) "<hr>"))
           (pure t) (important-return-value t))
  "<hr>")

类似 export block，我也对 keyword 导出进行了一些扩展。在 ox-html 的实现中，keyword 用于导出 HTML 片段和 table of contents：

(defun org-html-keyword (keyword _contents info)
  "Transcode a KEYWORD element from Org to HTML.
CONTENTS is nil.  INFO is a plist holding contextual information."
  (let ((key (org-element-property :key keyword))
	(value (org-element-property :value keyword)))
    (cond
     ((string= key "HTML") value)
     ((string= key "TOC")
      (let ((case-fold-search t))
	(cond
	 ((string-match "\\<headlines\\>" value)
	  (let ((depth (and (string-match "\\<[0-9]+\\>" value)
			    (string-to-number (match-string 0 value))))
		(scope
		 (cond
		  ((string-match ":target +\\(\".+?\"\\|\\S-+\\)" value) ;link
		   (org-export-resolve-link
		    (org-strip-quotes (match-string 1 value)) info))
		  ((string-match-p "\\<local\\>" value) keyword)))) ;local
	    (org-html-toc depth info scope)))
	 ((string= "listings" value) (org-html-list-of-listings info))
	 ((string= "tables" value) (org-html-list-of-tables info))))))))

TOC 对我目前的 ox-w3ctr 实现来说还是一个没有探索过的元素，这里只能先搁置之后再看：

(defun t-keyword (keyword _contents _info)
  "Transcode a KEYWORD element from Org to HTML.
CONTENTS is nil."
  (declare (ftype (function (t t t) string))
           (important-return-value t))
  (let ((key (org-element-property :key keyword))
        (value (org-element-property :value keyword)))
    (pcase key
      ((or "H" "HTML") value)
      ("E" (format "%s" (eval (read (or (t--nw-p value) "\"\"")))))
      ("D" (t--sexp2html (read (or (t--nw-p value) "\"\""))))
      ("L" (mapconcat #'t--sexp2html
                      (read (format "(%s)" value))))
      (_ ""))))

<p> HTML 元素表示文本的一个段落。在视觉媒体中，段落通常表现为用空行和/或首行缩进与相邻段落分隔的文本块，但 HTML 段落可以是相关内容的任何结构分组，如图像或表格字段。

org-html-paragraph

(defun org-html-paragraph (paragraph contents info)
  "Transcode a PARAGRAPH element from Org to HTML.
CONTENTS is the contents of the paragraph, as a string.  INFO is
the plist used as a communication channel."
  (let* ((parent (org-element-parent paragraph))
	 (parent-type (org-element-type parent))
	 (style '((footnote-definition " class=\"footpara\"")
		  (org-data " class=\"footpara\"")))
	 (attributes (org-html--make-attribute-string
		      (org-export-read-attribute :attr_html paragraph)))
	 (extra (or (cadr (assq parent-type style)) "")))
    (cond
     ((and (eq parent-type 'item)
	   (not (org-export-get-previous-element paragraph info))
	   (let ((followers (org-export-get-next-element paragraph info 2)))
	     (and (not (cdr followers))
		  (org-element-type-p (car followers) '(nil plain-list)))))
      ;; First paragraph in an item has no tag if it is alone or
      ;; followed, at most, by a sub-list.
      contents)
     ((org-html-standalone-image-p paragraph info)
      ;; Standalone image.
      (let ((caption
	     (let ((raw (org-export-data
			 (org-export-get-caption paragraph) info))
		   (org-html-standalone-image-predicate
		    #'org-html--has-caption-p))
	       (if (not (org-string-nw-p raw)) raw
		 (concat "<span class=\"figure-number\">"
			 (format (org-html--translate "Figure %d:" info)
				 (org-export-get-ordinal
				  (org-element-map paragraph 'link
				    #'identity info t)
				  info nil #'org-html-standalone-image-p))
			 " </span>"
			 raw))))
	    (label (org-html--reference paragraph info)))
	(org-html--wrap-image contents info caption label)))
     ;; Regular paragraph.
     (t (format "<p%s%s>\n%s</p>"
		(if (org-string-nw-p attributes)
		    (concat " " attributes) "")
		extra contents)))))

在 ox-html 的实现中，当被导出项是 item 的第一个子元素，且该元素没有兄弟元素或者仅有一个 plain-list 兄弟元素时， org-html-paragraph 不会添加 <p> 标签而是直接导出为 plain text 内容。这一处理方式没什么问题，不过作者可能忽略了对 checkbox 的处理，下面的列表在 ox-html 中的导出结果如下（ox-html 默认 CSS 样式）：

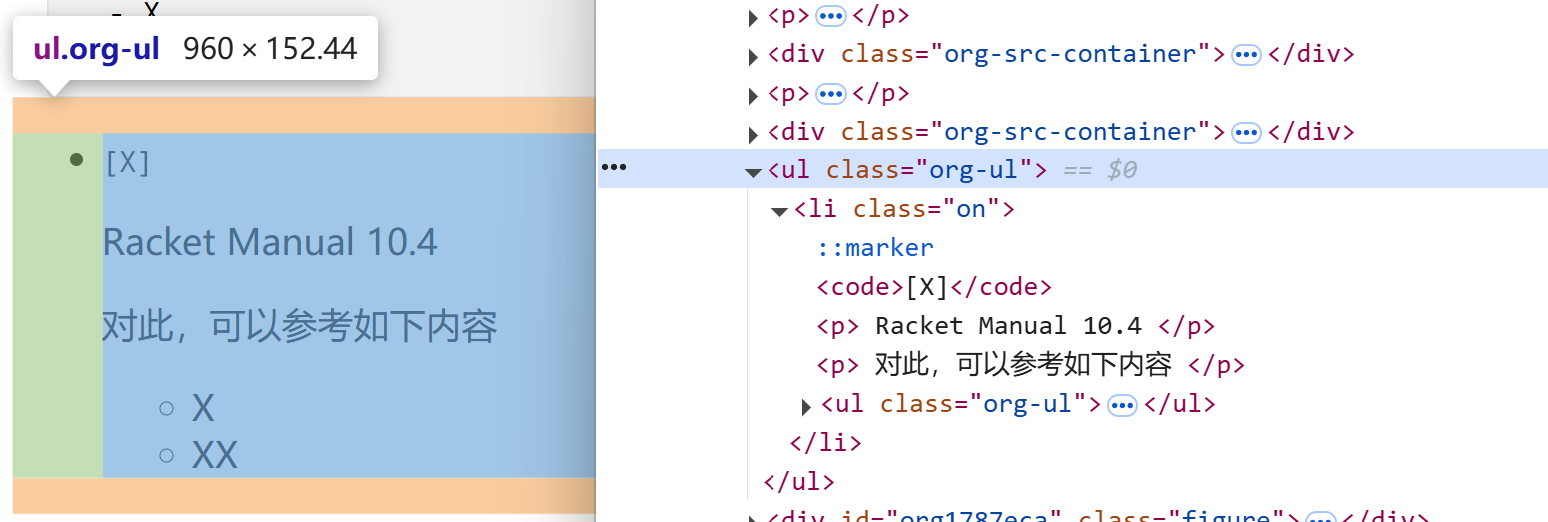

- [X] Racket Manual 10.4

  对此，可以参考如下内容
  - X
  - XX

在上面的例子中，由于列表首段的紧邻兄弟元素不是 plain list，它被导出为 <p> 元素，而 checkbox 由 org-w3ctr-item 分别处理从而不位于 <p> 中。虽然我不知道 ox-html 的导出是否有意这样，但至少它的导出看起来应该和 Org 原文档差不多才对。对此，一种解决方式是为 <li> 的第一个 <p> 指定内联显示方式，比如：

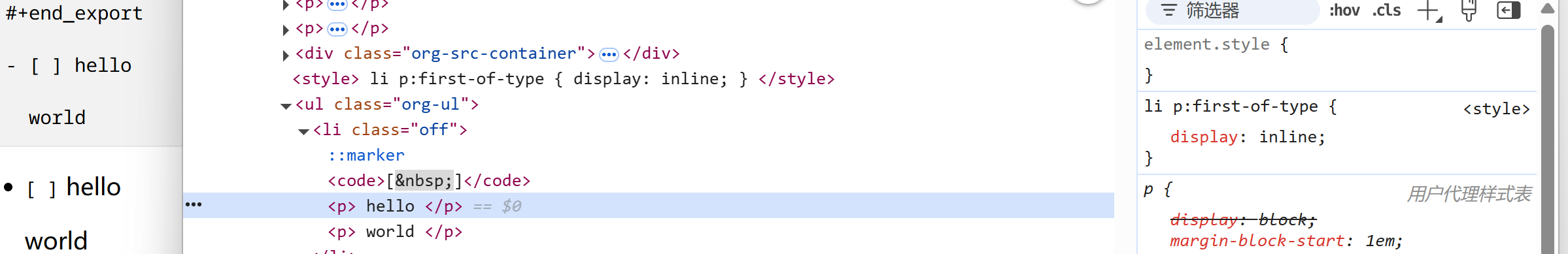

#+begin_export html
<style>
li p:first-of-type {
  display: inline;
}
</style>
#+end_export

- [ ] hello

  world

不过我选择了一种更简单的方法，item 的第一个元素始终不导出到 HTML 段落元素，而是直接输出文本或带属性的 <span> 元素：

(cond
 (;; Item's first line.
  (and (eq parent-type 'item)
       (not (org-export-get-previous-element paragraph info)))
  (if (string= attrs "") contents
    (format "<span%s>%s</span>" attrs contents)))
 ...)

org-html-paragraph 做的另一件事是导出 standalone 图片为 img 而不是段落元素，可以注意到代码为图片添加了数字顺序，这一任务实际上可以使用现代 CSS 的 counter 来实现，因此我也对这一部分实现进行了简化：

(;; Standalone image.
 (t-standalone-image-p paragraph info)
 (let* ((caption (org-export-get-caption paragraph))
        (cap (or (and caption (org-export-data caption info)) "")))
   (t--wrap-image contents info cap attrs)))

最后是通常段落的导出，这倒是没有什么差别，完整的 org-w3ctr-paragraph 如下：

(defun t-paragraph (paragraph contents info)
  "Transcode a PARAGRAPH element from Org to HTML.
CONTENTS is the contents of the paragraph, as a string."
  (declare (ftype (function (t string plist) string))
           (important-return-value t))
  (let* ((parent (org-export-get-parent paragraph))
         (parent-type (org-element-type parent))
         (attrs (t--make-attr__id* paragraph info t)))
    (cond
     (;; Item's first line.
      (and (eq parent-type 'item)
           (not (org-export-get-previous-element paragraph info)))
      (if (string= attrs "") contents
        (format "<span%s>%s</span>" attrs contents)))
     (;; Standalone image.
      (t-standalone-image-p paragraph info)
      (let* ((caption (org-export-get-caption paragraph))
             (cap (or (and caption (org-export-data caption info)) "")))
        (t--wrap-image contents info cap attrs)))
     ;; Regular paragraph.
     (t (let ((c (t--trim contents)))
          (if (string= c "") ""
            (format "<p%s>%s</p>" attrs c)))))))

由于 paragraph 是 Org 文档中出现最频繁的元素，我写了个 filter 来去掉元素尾部多余的换行符：

(defun t-paragraph-filter (value _backend _info)
  "Delete paragraph's trailing newlines."
  (declare (ftype (function (string t t) string))
           (pure t) (important-return-value t))
  (concat (string-trim-right value) "\n"))

不过老实说这应该是 HTML Formatter 的工作，加或者不加这个 filter 并没有太大的影响。

评价为几乎没用过的东西。

(defun org-html-verse-block (_verse-block contents info)
  "Transcode a VERSE-BLOCK element from Org to HTML.
CONTENTS is verse block contents.  INFO is a plist holding
contextual information."
  (format "<p class=\"verse\">\n%s</p>"
	  ;; Replace leading white spaces with non-breaking spaces.
	  (replace-regexp-in-string
	   "^[ \t]+" (lambda (m) (org-html--make-string (length m) "&#xa0;"))
	   ;; Replace each newline character with line break.  Also
	   ;; remove any trailing "br" close-tag so as to avoid
	   ;; duplicates.
	   (let* ((br (org-html-close-tag "br" nil info))
		  (re (format "\\(?:%s\\)?[ \t]*\n" (regexp-quote br))))
	     (replace-regexp-in-string re (concat br "\n") contents)))))

ox-html 为 .verse 使用了 p.verse { margin-left: 3%; } 的 CSS，我还是交给用户去设定 CSS 类了：

(defun t-verse-block (verse-block contents info)
  "Transcode a VERSE-BLOCK element from Org to HTML.
CONTENTS is verse block contents."
  (declare (ftype (function (t (or null string) plist) string))
           (important-return-value t))
  (format
   "<p%s>\n%s</p>"
   (t--make-attr__id* verse-block info t)
   ;; Replace leading white spaces with non-breaking spaces.
   (replace-regexp-in-string
    "^[ \t]+" (lambda (m) (t--make-string (length m) "&#xa0;"))
    ;; Replace each newline character with line break. Also
    ;; remove any trailing "br" close-tag so as to avoid
    ;; duplicates.
    (let* ((re (format "\\(?:%s\\)?[ \t]*\n"
                       (regexp-quote "<br>"))))
      (replace-regexp-in-string
       re "<br>\n" (or contents ""))))))

没什么好说的。

(defun t-entity (entity _contents _info)
  "Transcode an ENTITY object from Org to HTML."
  (declare (ftype (function (t t t) string))
           (pure t) (important-return-value t))
  (org-element-property :html entity))

同上。

(defun t-export-snippet (export-snippet _contents _info)
  "Transcode a EXPORT-SNIPPET object from Org to HTML."
  (declare (ftype (function (t t t) string))
           (important-return-value t))
  (let* ((backend (org-export-snippet-backend export-snippet))
         (value (org-element-property :value export-snippet)))
    (pcase backend
      ;; plain html text.
      ((or 'h 'html) value)
      ;; Read, Evaluate, Print, no Loop :p
      ('e (format "%s" (eval (read (or (t--nw-p value) "\"\"")))))
      ;; sexp-style html data.
      ('d (t--sexp2html (read (or (t--nw-p value) "\"\""))))
      ;; sexp-style html data list.
      ('l (mapconcat #'t--sexp2html (read (format "(%s)" value))))
      (_ ""))))

同上。

(defun t-line-break (_line-break _contents _info)
  "Transcode a LINE-BREAK object from Org to HTML."
  (declare (ftype (function (t t t) "<br>\n"))
           (pure t) (important-return-value t))
  "<br>\n")

在 ox-html 中，target 导出为无文本的 <a> 标签，标签指定了 id 属性。在现代 HTML 中似乎更加推荐使用 <span> 作为 target，因此我的 org-w3ctr-target 实现如下：

(defun t-target (target _contents info)
  "Transcode a TARGET object from Org to HTML.
CONTENTS is nil.  INFO is a plist holding contextual
information."
  (declare (ftype (function (t t plist) string))
           (important-return-value t))
  (format "<span id=\"%s\"></span" (t--reference target info)))

类似 target，没什么好说的。

(defun t-radio-target (radio-target text info)
  "Transcode a RADIO-TARGET object from Org to HTML."
  (declare (ftype (function (t (or null string) plist) string))
           (important-return-value t))
  (format "<span id=\"%s\">%s</span>"
          (t--reference radio-target info) (or text "")))

同上。

(defun t-statistics-cookie (statistics-cookie _contents _info)
  "Transcode a STATISTICS-COOKIE object from Org to HTML."
  (declare (ftype (function (t t t) string))
           (pure t) (important-return-value t))
  (format "<code>%s</code>"
          (org-element-property :value statistics-cookie)))

同上。

(defun t-subscript (_subscript contents _info)
  "Transcode a SUBSCRIPT object from Org to HTML."
  (declare (ftype (function (t string t) string))
           (pure t) (important-return-value t))
  (format "<sub>%s</sub>" contents))

同上。

(defun t-superscript (_superscript contents _info)
  "Transcode a SUPERSCRIPT object from Org to HTML."
  (declare (ftype (function (t string t) string))
           (pure t) (important-return-value t))
  (format "<sup>%s</sup>" contents))

这里是 org 支持的六种富文本标记，很简单直接给出代码了：

rich-text

(defcustom t-text-markup-alist
  ;; See also `org-html-text-markup-alist'.
  '((bold . "<strong>%s</strong>")
    (code . "<code>%s</code>")
    (italic . "<em>%s</em>")
    (strike-through . "<s>%s</s>")
    (underline . "<span class=\"underline\">%s</span>")
    (verbatim . "<code>%s</code>"))
  ...)

(defsubst t--get-markup-format (name info)
  "Get markup format string for NAME from INFO plist.
Returns \"%s\" if not found.

NAME is a symbol (like \\='bold), INFO is Org export info plist."
  (declare (ftype (function (symbol plist) string))
           (pure t) (important-return-value t))
  (if-let* ((alist (plist-get info :html-text-markup-alist))
            (str (cdr (assq name alist))))
      str "%s"))

;;;; Bold
;; See (info "(org) Emphasis and Monospace")
;; Change `org-w3ctr-text-markup-alist' to do customizations.
(defun t-bold (_bold contents info)
  "Transcode BOLD from Org to HTML."
  (declare (ftype (function (t string plist) string))
           (pure t) (important-return-value t))
  (format (t--get-markup-format 'bold info) contents))

;;;; Italic
;; See (info "(org) Emphasis and Monospace")
;; Change `org-w3ctr-text-markup-alist' to do customizations.
(defun t-italic (_italic contents info)
  "Transcode ITALIC from Org to HTML."
  (declare (ftype (function (t string plist) string))
           (pure t) (important-return-value t))
  (format (t--get-markup-format 'italic info) contents))

;;;; Underline
;; See (info "(org) Emphasis and Monospace")
;; Change `org-w3ctr-text-markup-alist' to do customizations.
(defun t-underline (_underline contents info)
  "Transcode UNDERLINE from Org to HTML."
  (declare (ftype (function (t string plist) string))
           (pure t) (important-return-value t))
  (format (t--get-markup-format 'underline info) contents))

;;;; Verbatim
;; See (info "(org) Emphasis and Monospace")
;; Change `org-w3ctr-text-markup-alist' to do customizations.
(defun t-verbatim (verbatim _contents info)
  "Transcode VERBATIM from Org to HTML."
  (declare (ftype (function (t string plist) string))
           (pure t) (important-return-value t))
  (format (t--get-markup-format 'verbatim info)
          (t--encode-plain-text
           (org-element-property :value verbatim))))

;;;; Code
;; See (info "(org) Emphasis and Monospace")
;; Change `org-w3ctr-text-markup-alist' to do customizations.
(defun t-code (code _contents info)
  "Transcode CODE from Org to HTML."
  (declare (ftype (function (t string plist) string))
           (pure t) (important-return-value t))
  (format (t--get-markup-format 'code info)
          (t--encode-plain-text
           (org-element-property :value code))))

;;;; Strike-Through
;; See (info "(org) Emphasis and Monospace")
;; Change `org-w3ctr-text-markup-alist' to do customizations.
(defun t-strike-through (_strike-through contents info)
  "Transcode STRIKE-THROUGH from Org to HTML."
  (declare (ftype (function (t string plist) string))
           (pure t) (important-return-value t))
  (format (t--get-markup-format 'strike-through info) contents))

在 ox-html 中， italic 导出为 <i> 标签，在 ox-w3ctr 中我改为 <em> 标签；在 ox-html 中 strike-through 导出为 <del> 标签，我改为 <s> 标签；在 ox-html 中 bold 导出为 <b> 标签，我改为 <strong> 标签。

同样，没什么好说的，基本照抄 ox-html 的实现。

(defconst t-special-string-regexps
  '(("\\\\-" . "&#x00ad;"); shy
    ("---\\([^-]\\)" . "&#x2014;\\1"); mdash
    ("--\\([^-]\\)" . "&#x2013;\\1"); ndash
    ("\\.\\.\\." . "&#x2026;")); hellip
  "Regular expressions for special string conversion.")

(defun t--convert-special-strings (string)
  "Convert special characters in STRING to HTML."
  (declare (ftype (function (string) string))
           (side-effect-free t) (important-return-value t))
  (dolist (a t-special-string-regexps string)
    (let ((re (car a))
          (rpl (cdr a)))
      (setq string (replace-regexp-in-string re rpl string t)))))

(defun t-plain-text (text info)
  "Transcode a TEXT string from Org to HTML."
  (declare (ftype (function (string plist) string))
           (side-effect-free t) (important-return-value t))
  (let ((output text))
    ;; Protect following characters: <, >, &.
    (setq output (t--encode-plain-text output))
    ;; Handle smart quotes.  Be sure to provide original
    ;; string since OUTPUT may have been modified.
    (when (plist-get info :with-smart-quotes)
      (setq output (org-export-activate-smart-quotes
                    output :html info text)))
    ;; Handle special strings.
    (when (plist-get info :with-special-strings)
      (setq output (t--convert-special-strings output)))
    ;; Handle break preservation if required.
    (when (plist-get info :preserve-breaks)
      (setq output
            (replace-regexp-in-string
             "\\(\\\\\\\\\\)?[ \t]*\n"
             "<br>\n" output)))
    ;; Return value.
    output))

ox-w3ctr 开发笔记 (2)

1. Elements

1.1. Item and Plain lists

1.1.1. 有序列表 `<ol>`

1.1.2. 无序列表 `<ul>`

1.1.3. 描述列表 `<dl>`

1.1.4. ox-html 的实现

1.1.5. ox-w3ctr 的实现

1.1.5.1. checkbox

1.1.5.2. `<ol>, <ul>, <dl>`

1.2. Quote Block

1.3. Example Block

1.4. Export Block

1.5. Fixed Width

1.6. Horizontal Rule

1.7. Keyword

1.8. Paragraph

1.8.1. filter

1.9. Verse Block

2. Objects

2.1. Entity

2.2. Export Snippet

2.3. Line Break

2.4. Target

2.5. Radio Target

2.6. Statistics Cookie

2.7. Subscript

2.8. Superscript

2.9. 富文本

2.10. Plain text

ox-w3ctr 开发笔记 (2)

1. Elements

1.1. Item and Plain lists

1.1.1. 有序列表 <ol>

1.1.2. 无序列表 <ul>

1.1.3. 描述列表 <dl>

1.1.4. ox-html 的实现

1.1.5. ox-w3ctr 的实现

1.1.5.1. checkbox

1.1.5.2. <ol>, <ul>, <dl>

1.2. Quote Block

1.3. Example Block

1.4. Export Block

1.5. Fixed Width

1.6. Horizontal Rule

1.7. Keyword

1.8. Paragraph

1.8.1. filter

1.9. Verse Block

2. Objects

2.1. Entity

2.2. Export Snippet

2.3. Line Break

2.4. Target

2.5. Radio Target

2.6. Statistics Cookie

2.7. Subscript

2.8. Superscript

2.9. 富文本

2.10. Plain text

1.1.1. 有序列表 `<ol>`

1.1.2. 无序列表 `<ul>`

1.1.3. 描述列表 `<dl>`

1.1.5.2. `<ol>, <ul>, <dl>`
