在 ox-html 或者说所有 Org-mode 的导出后端中，我们可以使用 #+attr_backend 来为某些元素或对象指定一些额外的属性，这在导出到 HTML 的 ox-html 中就是 #+attr_html 。举例来说，如果想要为表格添加 data 类，可以使用如下代码：
#+attr_html: :class data
| 1 | 2 | 3 |如果我们舍弃掉“特定后端选项”这个概念而仅仅以 HTML 作为单一导出目标，那么 #+attr_backend 中的 backend 可以省略。由于 backend 至少需要一个字符，我在 ox-w3ctr 中选取了 _ ，即下划线，最后来使用 #+attr__ 来代替 #+attr_html 。
在导出过程中，属性一般使用 org-export-read-attribute 来读取，它会将属性关键字的字符串转换为 plist 方便读取。对上面的例子，为 org-export-read-attribute 添加以下 advice 可以观察到如下结果：
(define-advice org-export-read-attribute
(:filter-return (res) test)
(setq a res))
;; exporting last example with ox-html
a ;;=> (:class "data")这一方式导致每个属性必须对应一个值。如果某个属性没有值（或者说本身作为值，比如上面 details 的 open 或 close ），那就必须写成 #+attr_html: :open open ，或者是 #+attr_html: :open "" 等等。仅有属性名而没有属性值的做法在 HTML5 中叫做布尔属性（Boolean attributes），这在 XML 中是非法的。
对此，一种可能的解决方法是直接使用 S-表达式，遇到列表就看作键值对，遇到单个原子就看作布尔属性。相比于使用 org-export-read-attributes ，我重新实现了 org-w3ctr--read-attr ，它会使用 read 读取属性字符串。 org-export-read-attributes 还有一个可选的第三参数来从结果 plist 中找出指定的属性值，不过我注意到 ox-html.el 中只有一处使用了这个参数，在我的实现中这个参数被去掉了。
由于一般用到 #+attr__ 的地方是指定元素的类，我也专门给类使用了向量语法，这样就不用写 class 了。两种方法的区别大致可以通过下面的示例说明：
#+attr__: [data]
#+attr__: (class data)
#+attr_html: :class data为了将获取到的属性 S-表达式转换为合法的 HTML 属性，我实现了 org-w3ctr--make-attr 来替换 org-html--make-attribute-string 。由于 Org-mode 的 ID 属性一般放在 #+NAME 里面，为了 id 还需要补充一下 #+NAME 属性的获取与处理。为此我又实现了 org-w3ctr--make-attr__ 和 org-w3ctr--make-attr__id 。为了保持对 #+attr_html 的兼容，我也实现了 org-w3ctr--make-attr_html ，我会在下文对它们进行详细说明。
本文会涉及三个导出函数，它们分别导出 center block, drawer 和 dynamic block，除了 drawer 在 ox-html 中不导出外其余没有太大区别。
在 (info "(org)Paragraphs") 中，对 center block 的介绍如下：
If you would like to center some text, do it like this:
它的语义就是让其中的内容居中，在 HTML 直接对应 <center> ，但 <center> 已经在 HTML4 被废弃了：
The
<center>HTML element is a block-level element that displays its block-level or inline contents centered horizontally within its containing element. The container is usually, but isn't required to be,<body>.This tag has been deprecated in HTML 4 (and XHTML 1) in favor of the CSS
text-alignproperty, which can be applied to the<div>element or to an individual<p>. For centering blocks, use other CSS properties likemargin-leftandmargin-rightand set them to auto (or setmarginto 0 auto).
在 CSS alternative 一节给出了如下例子，对于文字居中来说这是比较好的实现了：
<div style="text-align:center">
This text will be centered.
<p>So will this paragraph.</p>
</div>在 (info "(org)Drawers") 中对 drawer 的介绍如下：
Sometimes you want to keep information associated with an entry, but you normally do not want to see it. For this, Org mode has drawers. They can contain anything but a headline and another drawer. Drawers look like this:
Drawer 元素在 ox-html 中默认不导出，但它非常适合用来实现某些内容的折叠，可以对应于 HTML 中的 <details> 和 <summary> 。drawer 不支持嵌套，但嵌套的可折叠内容一般也用不上。
The
<details>HTML element creates a disclosure widget in which information is visible only when the widget is toggled into an open state. A summary or label must be provided using the<summary>element.A disclosure widget is typically presented onscreen using a small triangle that rotates (or twists) to indicate open/closed state, with a label next to the triangle. The contents of the
<summary>element are used as the label for the disclosure widget. The contents of the<details>provide the accessible description for the<summary>.hide
A
<details>widget can be in one of two states. The default closed state displays only the triangle and the label inside<summary>(or a user agent-defined default string if no<summary>).When the user clicks on the widget or focuses it then presses the space bar, it "twists" open, revealing its contents. The common use of a triangle which rotates or twists around to represent opening or closing the widget is why these are sometimes called "twisty".
You can use CSS to style the disclosure widget, and you can programmatically open and close the widget by setting/removing its
openattribute. Unfortunately, at this time, there's no built-in way to animate the transition between open and closed.By default when closed, the widget is only tall enough to display the disclosure triangle and summary. When open, it expands to display the details contained within.
在 Org-mode 中，drawer 的范围由 :name: 到 最近 的 :end: 界定。drawer 的名字不能含有空格。在第一次实现 drawer 支持时，我通过名字开头是否有 open- 来决定 <details> 是否含有 open 属性，现在看来更合适的做法是读取 #+attr_html 和 #+attr__ 。由于名字不能含空格可能默认使用名字生成的 <summary> 不够美观，我选择通过 #+caption 来支持设定 <summary> 内容。
dynamic block 是 Org-mode 中我几乎从来没有使用过的功能。它可以用来“动态”地更新块中的内容，由于它不会使用通常的 Org 块状渲染，我在先前的 ox-w3ctr 实现中一度使用它来部分实现 special block 的功能：
#+BEGIN: myblock :parameter1 value1 :parameter2 value2 ...
...
#+END:当然，现在看来还是保留它的原本实现就好。
(defun t-dynamic-block (_dynamic-block contents _info)
(or contents ""))本文只介绍 3 个导出函数的原因是它们内部使用的函数也得介绍一下。这里让我们把上面提到的函数都规范一下，顺便根据这些规范设计一些测试出来。
(defsubst t--maybe-contents (contents)
(if (stringp contents) (concat "\n" contents) ""))此函数用于处理块级元素的内容。在导出到 HTML 块级元素时，一般的惯例是在开标签的后面加上换行符。如果 CONTENTS 是一个字符串，函数会在其前面添加一个换行符 "\n" 并返回。如果 CONTENTS 不是字符串，则函数返回一个空字符串 "" 。

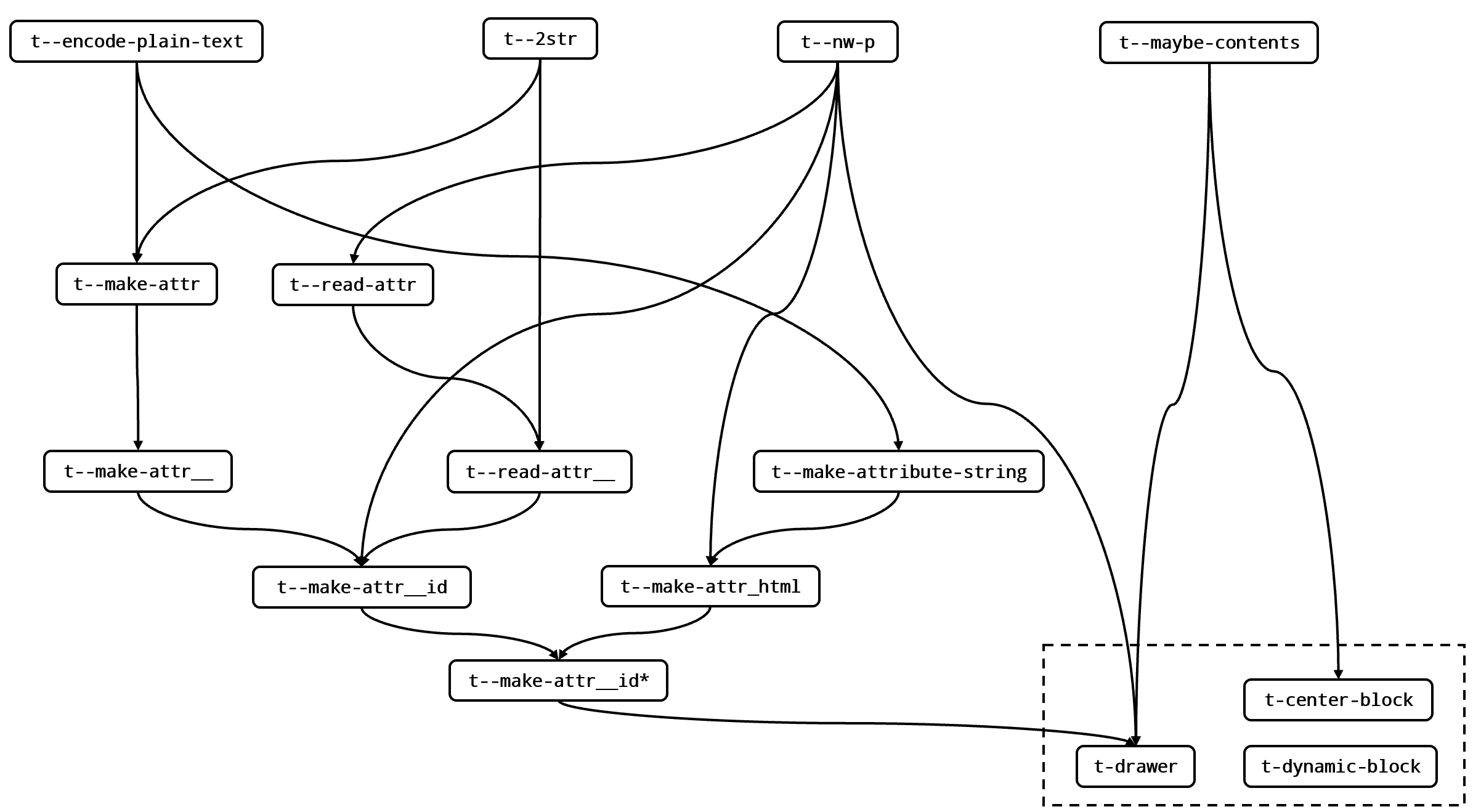

虽然在上图中 org-w3ctr--maybe-contents 只指向 org-w3ctr-drawer 和 org-w3ctr-center-block ，但它在还未介绍的其他导出函数中也有使用。读者可能会疑惑为什么不需要在 CONTENTS 后面加上换行，这是因为 Org-mode 导出会保留必要的换行符：
;; end of `org-export-data', ox.el line 2018.
(org-export-filter-apply-functions
(plist-get info (intern (format ":filter-%s" type)))
(let ((blank (or (org-element-post-blank data) 0)))
(if (eq (org-element-class data parent) 'object)
(concat results (make-string blank ?\s))
(concat (org-element-normalize-string results)
(make-string blank ?\n))))
info)下面是测试代码，很难说这么简单的代码有什么测试的必要：
(ert-deftest t--maybe-contents ()
(should (equal (t--maybe-contents nil) ""))
(should (equal (t--maybe-contents "") "\n"))
(should (equal (t--maybe-contents "abc") "\nabc"))
(should (equal (t--maybe-contents 123) ""))
(should (equal (t--maybe-contents '(1 2)) "")))(defsubst t--nw-p (s)
(and (stringp s) (string-match-p "[^ \r\t\n]" s) s))此函数用于判断参数是否为字符串，且至少含有一个非空白字符，若满足条件则返回原字符串，否则返回空值。此函数直接来自 org-string-nw-p ：
(defun org-string-nw-p (s)
"Return S if S is a string containing a non-blank character.
Otherwise, return nil."
(and (stringp s)
(string-match-p "[^ \r\t\n]" s)
s))测试如下：
(ert-deftest t--nw-p ()
(should (equal (t--nw-p "123") "123"))
(should (equal (t--nw-p " 1") " 1"))
(should (equal (t--nw-p "\t\r\n2") "\t\r\n2"))
(should-not (t--nw-p ""))
(should-not (t--nw-p "\t\s\r\n")))(defsubst t--2str (s)
(cl-typecase s
(null nil)
(symbol (symbol-name s))
(string s)
(number (number-to-string s))
(otherwise nil)))该函数将数字，符号和字符串转换为字符串，若为其他类型则返回空值。测试如下：
(ert-deftest t--2str ()
(should (eq (t--2str nil) nil))
(should (string= (t--2str 1) "1"))
(should (string= (t--2str 114.514) "114.514"))
(should (string= (t--2str ?a) "97"))
(should (string= (t--2str 'hello) "hello"))
(should (string= (t--2str 'has\ space) "has space"))
(should (string= (t--2str 'has\#) "has#"))
(should (string= (t--2str "string") "string"))
(should-not (t--2str [1]))
(should-not (t--2str (make-char-table 'sub)))
(should-not (t--2str (make-bool-vector 3 t)))
(should-not (t--2str (make-hash-table)))
(should-not (t--2str (lambda (x) x))))(defun t--read-attr (attribute element)
(when-let* ((value (org-element-property attribute element))
(str (t--nw-p (mapconcat #'identity value " "))))
(read (concat "(" str ")"))))此函数用于从元素 ELEMENT 中读取属性 ATTRIBUTE ，并使用 read 将字符串转换为列表。若属性不存在或属性值为空字符串则返回空值。此函数的实现基本上参考了 org-export-read-attribute ，尤其是需要注意到如果某个 ELEMENT 附加了多个 ATTRIBTUE 时的情况，这对应于实现中的 mapconcat 。
如果想要在不进行实际导出的情况下进行测试，那就需要 mock 一下 org-element-property ，下面的做法有点 hack，这与 org-element-property 的实现有关。
测试如下：
(ert-deftest t--read-attr ()
;; `org-element-property' use `org-element--property'
;; and defined using `define-inline'.
(cl-letf (((symbol-function 'org-element--property)
(lambda (_p n _deft _force) n)))
(should (equal (org-element-property :attr__ 123) 123))
(should (equal (org-element-property nil 1) 1))
(should (equal (t--read-attr nil '("123")) '(123)))
(should (equal (t--read-attr nil '("1 2 3" "4 5 6"))
'(1 2 3 4 5 6)))
(should (equal (t--read-attr nil '("(class data) [hello] (id ui)"))
'((class data) [hello] (id ui))))
(should (equal (t--read-attr nil '("\"123\"")) '("123"))))
(t-check-element-values
#'t--read-attr
'(("#+attr__: 1 2 3\n#+attr__: 4 5 6\nhello world"
(1 2 3 4 5 6))
("#+attr__: [hello world] (id no1)\nhello"
([hello world] (id no1)))
("nothing but text" nil)
("#+attr__: \"str\"\nstring" ("str"))
("#+attr__:\nempty" nil))))(defun t--read-attr__ (element)
(when-let* ((attrs (t--read-attr :attr__ element)))
(mapcar (lambda (x)
(cond ((not (vectorp x)) x)
((equal x []) nil)
(t (list "class" (mapconcat #'t--2str x " ")))))
attrs)))此函数用于从元素 ELEMENT 中提取 #+attr__ 属性并转换为列表，其中的向量会被转换为 (class ...) 列表。一种可能的情况是向量长度为 0，此时该函数会直接当作空值处理。
测试如下：
(ert-deftest t--read-attr__ ()
(cl-letf (((symbol-function 'org-element--property)
(lambda (_p n _deft _force) n)))
(should (equal (t--read-attr__ '("1 2 3")) '(1 2 3)))
(should (equal (t--read-attr__ '("(class data) open"))
'((class data) open)))
(should (equal (t--read-attr__ '("(class hello world)" "foo"))
'((class hello world) foo)))
(should (equal (t--read-attr__ '("[nim zig]"))
'(("class" "nim zig"))))
(should (equal (t--read-attr__ '("[]")) '(nil)))
(should (equal (t--read-attr__ '("[][][]")) '(()()()))))
(t-check-element-values
#'t--read-attr__
'(("#+attr__: 1 2 3\n#+attr__: 4\ntest" (1 2 3 4))
("#+attr__: [hello world] (id no1)\ntest"
(("class" "hello world") (id no1)))
("test" nil)
("#+attr__:\n#+attr__:\ntest" nil)
("#+attr__: []\ntest" (nil))
("#+attr__: [][][]\ntest" (nil nil nil)))))(defconst t--protect-char-alist
'(("&" . "&") ("<" . "<") (">" . ">")))
(defun t--encode-plain-text (text)
(dolist (pair t--protect-char-alist text)
(setq text (replace-regexp-in-string
(car pair) (cdr pair) text t t))))该函数会对参数文本中的某些字符进行转义，这是因为它们在 HTML 中具有特殊含义。出现在 org-w3ctr--protect-char-alist 中的 < 和 > 字符是 HTML 标签的开始和结束符， & 是实体引用的开始。
测试如下：
(ert-deftest t--encode-plain-text ()
"Tests for `org-w3ctr--encode-plain-text'."
(should (equal (t--encode-plain-text "") ""))
(should (equal (t--encode-plain-text "123") "123"))
(should (equal (t--encode-plain-text "hello world") "hello world"))
(should (equal (t--encode-plain-text "&") "&"))
(should (equal (t--encode-plain-text "<") "<"))
(should (equal (t--encode-plain-text ">") ">"))
(should (equal (t--encode-plain-text "<&>") "<&>"))
(dolist (a '(("a&b&c" . "a&b&c")
("<div>" . "<div>")
("<span>" . "<span>")))
(should (string= (t--encode-plain-text (car a)) (cdr a)))))(defsubst t--make-attr (list)
(when-let* (((not (null list)))
(name (t--2str (car list))))
(if-let* ((rest (cdr list)))
;; use lowercase prop name.
(concat " " (downcase name)
"=\""
(replace-regexp-in-string
"\"" """
(t--encode-plain-text
(mapconcat #'t--2str rest)))
"\"")
(concat " " (downcase name)))))该函数根据属性列表生成带空格的属性字符串。可见除了调用 org-w3ctr--encode-plain-text 还转义了属性中的双引号：escaping inside html tag attribute value。也许我们还需要转义单引号，但是如果我们始终使用双引号包裹属性值则无需关心单引号转义的问题。
以下是测试：
(ert-deftest t--make-attr ()
(should-not (t--make-attr nil))
(should-not (t--make-attr '(nil 1)))
(should-not (t--make-attr '([x])))
(should (string= (t--make-attr '(open)) " open"))
(should (string= (t--make-attr '("disabled")) " disabled"))
(should (string= (t--make-attr '(FOO)) " foo"))
(should (string= (t--make-attr '(a b)) " a=\"b\""))
(should (string= (t--make-attr '(class "example two"))
" class=\"example two\""))
(should (string= (t--make-attr '(foo [bar] baz))
" foo=\"baz\""))
(should (string= (t--make-attr '(data-A "base64..."))
" data-a=\"base64...\""))
(should (string= (t--make-attr '(data-tt "a < b && c"))
" data-tt=\"a < b && c\""))
(should (string= (t--make-attr '(data-he "\"hello world\""))
" data-he=\""hello world"\"")))(defun t--make-attr__ (attributes)
(mapconcat (lambda (x) (t--make-attr (if (atom x) (list x) x)))
attributes))该函数通过调用 org-w3ctr--make-attr 将属性列表转换为 HTML 属性字符串。
测试如下：
(ert-deftest t--make-attr__ ()
(should (equal (t--make-attr__ nil) ""))
(should (equal (t--make-attr__ '(nil)) ""))
(should (equal (t--make-attr__ '(nil nil [])) ""))
(should (equal (t--make-attr__ '(a)) " a"))
(should (equal (t--make-attr__ '((id yy 123) (class a\ b) test))
" id=\"yy123\" class=\"a b\" test"))
(should (equal (t--make-attr__ '((test this th&t <=>)))
" test=\"thisth&t<=>\"")))(defun t--make-attr__id (element info &optional named-only)
(let* ((reference (t--reference element info named-only))
(attributes (t--read-attr__ element))
(a (t--make-attr__
(if (or (not reference)
(cl-find 'id attributes :key #'car-safe))
attributes
(cons `("id" ,reference) attributes)))))
(if (t--nw-p a) a "")))相比 org-w3ctr--make-attr__ ，该函数通过 org-w3ctr--reference 获取了元素的 id 并加入到属性列表中。如果属性列表中已存在 id 则不加入由 org-w3ctr--reference 获取的 id 。
测试如下：
(ert-deftest t--make-attr__id ()
(t-check-element-values
#'t--make-attr__id
'(("#+attr__:\ntest" "")
("#+name:test\n#+attr__: hello\ntest" " id=\"test\" hello")
("#+name:1\n#+attr__:[data] (style {a:b})\ntest"
" id=\"1\" class=\"data\" style=\"{a:b}\"")
("#+name:1\n#+attr__:[hello world]\ntest"
" id=\"1\" class=\"hello world\"")
("#+name:1\n#+attr__:(data-test \"test double quote\")\nh"
" id=\"1\" data-test=\"test double quote\"")
("#+name:1\n#+attr__:(something <=>)\nt"
" id=\"1\" something=\"<=>\""))))(defun t--make-attribute-string (attributes)
(let (output)
(dolist ( item attributes
(mapconcat 'identity (nreverse output) " "))
(cond
((null item) (pop output))
((symbolp item) (push (substring (symbol-name item) 1) output))
(t (let ((key (car output))
(value (replace-regexp-in-string
"\"" """ (t--encode-plain-text item))))
(setcar output (format "%s=\"%s\"" key value))))))))该函数会将属性 plist ATTRIBUTES 转换为 HTML 属性字符串。
测试如下：
(ert-deftest t--make-attribute-string ()
"Tests for `org-w3ctr--make-attribute-string'."
(should (equal (t--make-attribute-string '(:a "1" :b "2"))
"a=\"1\" b=\"2\""))
(should (equal (t--make-attribute-string nil) ""))
(should (equal (t--make-attribute-string '(:a nil)) ""))
(should (equal (t--make-attribute-string '(:a "\"a\""))
"a=\""a"\""))
(should (equal (t--make-attribute-string '(:open "open"))
"open=\"open\""))
(t-check-element-values
#'t--make-attribute-string
'(("#+attr_html: :open open :class a\ntest"
"open=\"open\" class=\"a\"")
("#+attr_html: :id wo-1 :two\ntest" "id=\"wo-1\"")
("#+attr_html: :id :idd hhh\ntest" "idd=\"hhh\"")
("#+attr_html: :null nil :this test\ntest" "this=\"test\""))))(defun t--make-attr_html (element info &optional named-only)
(let* ((attrs (org-export-read-attribute :attr_html element))
(reference (t--reference element info named-only))
(a (t--make-attribute-string
(if (or (not reference) (plist-member attrs :id))
attrs (plist-put attrs :id reference)))))
(if (t--nw-p a) (concat " " a) "")))该函数根据 ELEMENT 的 #+attr_html 属性生成 HTML 属性字符串。
测试如下：
(ert-deftest t--make-attr_html ()
(t-check-element-values
#'t--make-attr_html
'(("#+attr_html:\ntest" "")
("#+attr_html: :hello hello\ntest" " hello=\"hello\"")
("#+name: 1\n#+attr_html: :class data\ntest"
" class=\"data\" id=\"1\"")
("#+attr_html: :id 1 :class data\ntest"
" id=\"1\" class=\"data\"")
("#+name: 1\n#+attr_html: :id 2 :class data two\ntest"
" id=\"2\" class=\"data two\"")
("#+attr_html: :data-id < > ? 2 =\ntest"
" data-id=\"< > ? 2 =\""))))(defun t--make-attr__id* (element info &optional named-only)
(if (org-element-property :attr__ element)
(t--make-attr__id element info named-only)
(t--make-attr_html element info named-only)))该函数首先会尝试根据 #+attr__ 生成 HTML 属性字符串；若没有找到 #+attr__ 属性则使用 #+attr_html 属性。
测试如下：
(ert-deftest t--make-attr__id* ()
(t-check-element-values
#'t--make-attr__id*
'(("#+attr__:\n#+attr_html: :class a\ntest" "")
("#+attr_html: :class a\ntest" " class=\"a\"")
("#+name: 1\n#+attr__: (id 2)\n#+attr_html: :id 3\ntest"
" id=\"2\"")
("#+name: 1\n#+attr_html: :id 3\ntest" " id=\"3\""))))(defun t-center-block (_center-block contents _info)
(format "<div style=\"text-align:center;\">%s</div>"
(t--maybe-contents contents)))此函数用于将 Org center block 元素生成 HTML 字符串。由于作用过于单一似乎没有什么太多需要补充的了。这样的导出函数只能在导出时进行测试，因为对测试来说直接以 Org 语法树节点作为输入过于复杂。为此我编写了如下辅助测试代码：
(defvar t-test-values nil
"A list to store return values during testing.")
(defun t-advice-return-value (result)
"Advice function to save and return RESULT.
Pushes RESULT onto `org-w3ctr-test-values' and returns RESULT."
(prog1 result
(push (if (not (stringp result)) result
(substring-no-properties result))
t-test-values)))
(defun t-check-element-values (fn pairs &optional body-only plist)
"Check that FN returns the expected values when exporting.
FN is a function to advice. PAIRS is a list of the form
((INPUT . EXPECTED) ...). INPUT is a string of Org markup to be
exported. EXPECTED is a list of expected return values from FN.
BODY-ONLY and PLIST are optional arguments passed to
`org-export-string-as'."
(advice-add fn :filter-return #'t-advice-return-value)
(unwind-protect
(dolist (test pairs)
(let (t-test-values)
(ignore (org-export-string-as
(car test) 'w3ctr body-only plist))
(should (equal t-test-values (cdr test)))))
(advice-remove fn #'t-advice-return-value)))测试如下：
(ert-deftest t-center-block ()
(t-check-element-values
#'t-center-block
'(("#+begin_center\n#+end_center"
"<div style=\"text-align:center;\"></div>")
("#+begin_center\n123\n#+end_center"
"<div style=\"text-align:center;\">\n<p>123</p>\n</div>")
("#+BEGIN_CENTER\n\n\n#+END_CENTER"
"<div style=\"text-align:center;\">\n\n</div>")
("#+BEGIN_CENTER\n\n\n\n\n\n#+END_CENTER"
"<div style=\"text-align:center;\">\n\n</div>"))))(defun t-drawer (drawer contents info)
(let* ((name (org-element-property :drawer-name drawer))
(cap (if-let* ((cap (org-export-get-caption drawer))
(exp (t--nw-p (org-export-data cap info))))
exp name))
(attrs (t--make-attr__id* drawer info t)))
(format "<details%s><summary>%s</summary>%s</details>"
attrs cap (t--maybe-contents contents))))该函数导出 drawer 到 details HTML 标签。测试如下：
(ert-deftest t-drawer ()
(t-check-element-values
#'t-drawer
'((":hello:\n:end:"
"<details><summary>hello</summary></details>")
("#+caption: what can i say\n:test:\n:end:"
"<details><summary>what can i say</summary></details>")
("#+name: id\n#+attr__: [example]\n:h:\n:end:"
"<details id=\"id\" class=\"example\"><summary>\
h</summary></details>")
("#+attr__: (open)\n:h:\n:end:"
"<details open><summary>h</summary></details>")
(":try-this:\n=int a = 1;=\n:end:"
"<details><summary>try-this</summary>\n<p><code>\
int a = 1;</code></p>\n</details>")
("#+CAPTION:\n:test:\n:end:"
"<details><summary>test</summary></details>")
("#+caption: \n:test:\n:end:"
"<details><summary>test</summary></details>")
("#+caption: \t\n:test:\n:end:"
"<details><summary>test</summary></details>"))))(defun t-dynamic-block (_dynamic-block contents _info)
(or contents ""))测试如下：
(ert-deftest t-dynamic-block ()
(t-check-element-values
#'t-dynamic-block
'(("#+begin: hello\n123\n#+end:" "<p>123</p>\n")
("#+begin: nothing\n#+end:" ""))))草，很难说这到底算不算博客，不过等到真正写项目文档的时候，这样的笔记应该是有用的。
